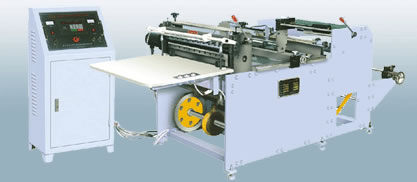

TCJ-QD350 / 600C microcomputer control speed automatic cut machine
Features:
The machine sets the essence of domestic and foreign similar machines, unique design.
With a flat cut, shaped cut, pressed dashed functions.
Using computer control, frequency control, photoelectric tracking, step (servo) setting length, automatic counting and other techniques, with low power consumption, high speed, high accuracy.
Suitable for color film, shrink film, batteries standard, mineral water target cut.
Technical parameters:
Effective width:
Maximum 350 mm 600 mm
Operating frequency:
Maximum 480 beats / min
Length:
0-999 mm
Positioning accuracy:
± 0.2 毫米
Power supply voltage:
50Hz 220V
Total power:
1kw
Weight:
700 kg
Dimensions:
2580 × 1050 × 1150 毫米
|
