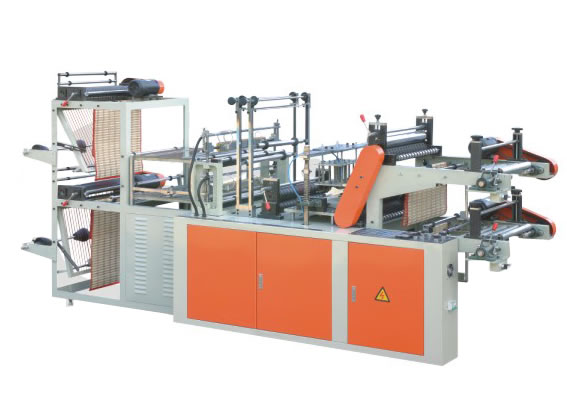

double layer vest roll, flat bag making machine
|
double layer vest roll, flat bag making machine Characteristics
Local specially designed to break even point volume pocket-off point and even the two-volume vest pocket with machine. The use of computer-controlled, stepper (server) systems so that the closure will be a long cut size of a small error. Electric eye tracking device so that the print bags of precise location of the design. Computer numerical control option to adjust the length of the bag, a bag printing problems of the automatic shutdown and issued a warning sound.
The bag making machine Use：
Local production of high-, low-density polyethylene film bags for supermarket shopping, shopping mall.
The bag making machine main technical parameters：
|
型號
|
TLB-500型
|
TLB-600型
|
TLB-700型
|
TLB-800型
|
|
制袋寬度(MM)
|
400
|
500
|
600
|
700
|
|
制袋長度(MM)
|
1200
|
1200
|
1200
|
1200
|
|
制袋厚度(MM)
|
0.008-0.10
|
0.008-0.10
|
0.008-0.10
|
0.008-0.10
|
|
制袋速度(pc/min)
|
40-120
|
40-120
|
40-120
|
40-120
|
|
電機功率
|
1.1
|
1.1
|
1.5
|
1.5
|
|
電熱功率
|
1.2
|
1.6
|
2
|
2.2
|
|
機械尺寸(L×W×H)
|
3300×1100×1500
|
3300×1200×1500
|
3300×1300×1500
|
3300×1400×1500
|
|
機器重量
|
800
|
850
|
900
|
1000
|
|
裝箱尺寸
|
3400×1200×1700
|
3400×1300×1700
|
3400×1400×1700
|
3400×1500×1700
|
|
|
|
