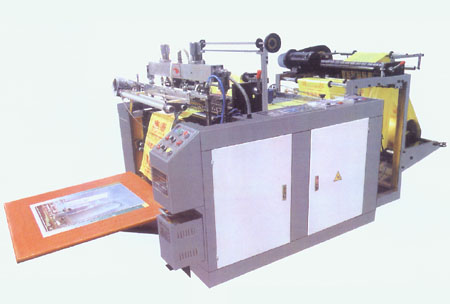

DFR-500 type DFR-700 type computer automatic heat sealing and cutting bag making machine
Features:
This machine is suitable for making sue speed tubular plastic qualities and color printing order of the vest bags (vest bag).
The use of advanced photoelectric eye tracking, the printing pattern position accurate. Sealing and eager to synchronize completely without tension, back strong and beautiful, with a variety of energy-saving automatic overload protection features such as over-current voltage, with automatic counting device, can be set arbitrarily set number of sheets stacked bags of the number of sheets to be set automatically after discharging, automatic reset work.
The main technical parameters:
Technical specifications DFR-500 DFR-700
The maximum sealing and cutting width of 500mm 700mm
Sealing and cutting length 100-1000min 100-1000min
Sealing and Cutting Thickness 0.005-0.05mm 0.005-0.05mm
Length error ± 1mm ± 1mm
Speed bag 40-120pcs / min 40-120pcs / min
Main motor power 0.75kw 1.1kw
Heating power 2kw 2.4kw
Total power 3kw 4.8kw
Machine weight 800kg 900kg
Dimensions (L ×) W × H) 2600 × 1150 × 1500mm 1600 × 1350 × 1500mm
|
