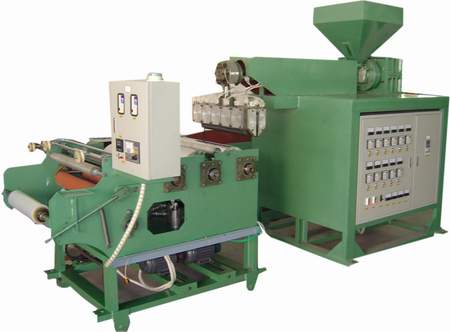

Cast film, stretch film machinery
Unit Features:
1, learn from foreign advanced technology, to be absorbed \ improvement, innovation developed from.
2, the whole frequency control, stable operation, high efficiency, low energy consumption.
3, products using a molding process.
4, can produce single-sided sticky, double-sided sticky.
5, special edge material collected from institutions
Unit Introduction

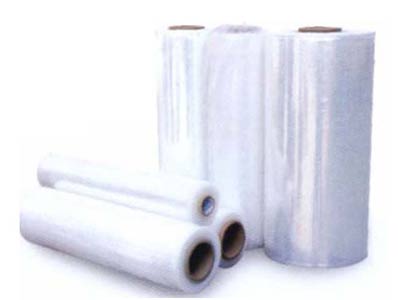

This series machine is mainly used for the production of one-way stretch polyethylene plastic film (stretch film, stretch film) as well as cling film, film production, or both can be achieved while sticky sticky side effects, widely used in building materials, hardware accessories, etc. packaging. Screw the unit using 38CRNOALA alloy steel, nitrogen treatment and precision machining, high hardness and durability. Thermostat using advanced automatic control system, T-die multi-point adjustment, the membrane material thickness is more uniform. Cooling device using circulating water cooling, good cooling effect. The coiling unit adopts friction winding, and is equipped with cutting-edge devices and edge material from winding mechanism, the winding of the film is more neatly.
The main technical parameters
Model specifications SLW-600 double-sided sticky SLW-1000 double-sided sticky
Screw diameter 50mm x2 55mm x2
Aspect Ratio: 28: 128: 1
Screw barrel timber 38CRMOLA 28CRMOLA
Mold width 750mm 1250mm
Width 600mm 500-1000mm
Thickness 0.015-0.05mm 0.015-0.05mm
Winding diameter 300mm 300mm
Yield 20-40kg / h 50-70kg / h
Main motor power 7.5kwx2 11kwx2
Heating power 30kw 45kw
Dimensions 4800x2000 x2600mm 4800x2600 x2600mm
Machine weight 3500kg 4500kg
|
