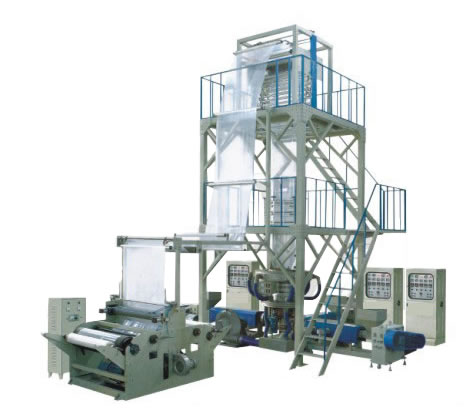

SJ-45X3 / FM 1000 SJ-50X3 / FM 120 three-layer co-extrusion Rotary Die Film Blowing Machine
Features:
1, the nose using 360 degree continuous rotation layered type spiral mandrel.
2, Quick Changer reasonable structure, easy to replace the filter, use and reliable.
3, the unit is equipped with a variety of features: remember long device, slitting device, cooling water row, flattening roller, scrap collecting device.
Uses:
Three plastic extrusion blow molding composite film crew is my factory according to market needs and developed in the design of the structure to absorb the advanced level of similar products at home and abroad. It uses flat squeezed blowing continuously blown fold width of 800/1500 mm and a thickness of various LDPE 0.08 mm, HDPE, LLDPE, MLLDPE, PA packaging films. This film because of its good barrier properties, moisture, moisture, rain, wind, frost, oxygen barrier, oil, and therefore can be used in light and heavy packaging, such as a variety of fresh fruits, meat, pickles, fresh milk, drinks, etc. .
The main technical parameters:
Model 3SJ-G1000
3SJ-G1200 3SJ-G1500
Screw diameter ф55 × 2 ф60 × 1 ф60 × 2 ф65 × 1 ф65 × 2 ф70 × 1
Screw length 28: 128: 128: 1
Screw speed 15-150r / min 15-150r / min 15-150r / min
Main motor power 15Kw × 2 18.5Kw × 1 18.5Kw × 2 22Kw × 1 22Kw × 2 30Kw × 1
Single extruder output 50kg / h 80kg / h 100kg / h
Die size ф150 φ200 ф200 φ250 × 1 ф250 ф300 × 1
Film thickness sided 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm
Film Max.Folding 1000mm 1200mm 1500mm
The total electrical capacity of 76Kw 88Kw 102Kw
Dimensions 6600 × 4100 × 5000mm 6800 × 4300 × 6000mm 7000 × 4800 × 7500mm
Weight 4T 5T 6T
|
