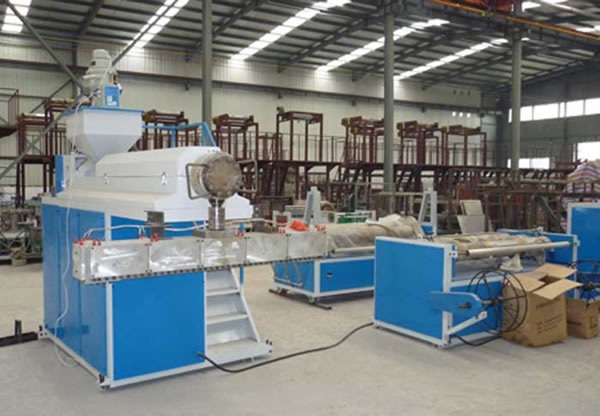

bubble film machine (air bubble film machines, foam film machine)
bubble film machine (air bubble film machines, foam film machine) Features:
The unit uses a one-time molding process, the company is widely absorb advanced technology, in the original common type devices through a lot of practice, development, design, can produced polyethylene compound bubble (cushion) membrane, the machine structure design science, practical and reasonable.
bubble film machine (air bubble film machines, foam film machine) main technical parameters
Model DY-1500 DY-1200 DY-600
Main and auxiliary extruder screw diameter φ75mm φ65mm φ55mm
Diameter ratio of 28:1 28:1 28:1
Deputy out of the main mechanical and electrical power 18.5KW 15KW 11KW
Product Width 1500 mm 1200 mm 600 mm
Main specifications bubble (Can be customized) φ6 × 3.2mm φ10 × 3.4mm φ25 × 10mm φ30 × 10mm
Yield 50-80kg / h 30-60kg / h 20-40kg / h
The total installed capacity of 65kw 55kw 40kw
Dimensions 7.5m × 2.8m × 2.5m 7.5m × 2.5m × 2.5m 7.0m × 2.0m × 2.5m
Weight 5.0T 3.8T 2.8T
Optional automatic feeding, electric quick-change filter, automatic winding turn
|
