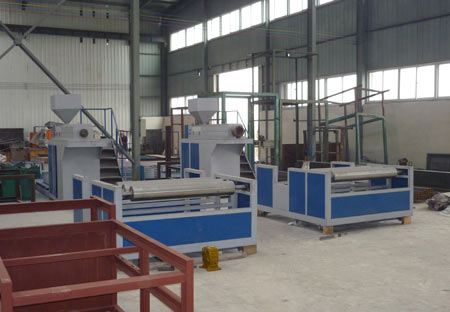

Air-cushion film machine, bubble film unit
Air-cushion film machine, bubble film unit Features:
The unit uses a one-time molding process, the company is widely absorb advanced technology, in the original common type devices through a lot of practice, development, design, can produced polyethylene compound bubble (cushion) membrane, the machine structure design science, practical and reasonable.
The Air-cushion film machine, bubble film unit main technical parameters (Main Technical Parameter)
Model DY-1500 DY-1200 DY-600
Main and auxiliary extruder screw diameter φ75mm φ65mm φ55mm
Diameter ratio of 28:1 28:1 28:1
Deputy out of the main mechanical and electrical power 18.5KW 15KW 11KW
Product Width 1500 mm 1200 mm 600 mm
Main specifications bubble (Can be customized) φ6 × 3.2mm φ10 × 3.4mm φ25 × 10mm φ30 × 10mm
Yield 50-80kg / h 30-60kg / h 20-40kg / h
The total installed capacity of 65kw 55kw 40kw
Dimensions 7.5m × 2.8m × 2.5m 7.5m × 2.5m × 2.5m 7.0m × 2.0m × 2.5m
Weight 5.0T 3.8T 2.8T
Optional automatic feeding, electric quick-change filter, automatic winding turn
|
