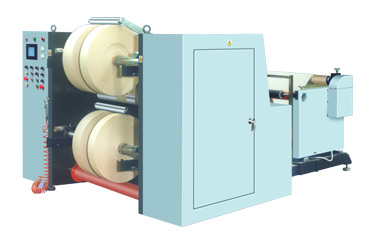

TCJ-WFQ1100 / 1300 / 1500B Series High Speed Slitting Machine
Details
The machines can be used cellophane, BOPP, PET, CPP, CPE, PVC, aluminum foil, paper and adhesive film with the various points of the volumes.
New features
Shoufang volumes of the tension optional flexible, more conducive to all kinds of Web-film material at the cutting operation
Shoufang optional gas volumes rose axis, and ensure the stability and life of machinery
Different characteristics of the film materials, add special allocation model to ensure that all sub-quality special aerodynamic design of back-pressure so that the sub-species Blanchett / hard at cutting the film material, handy
Basic functions
Control system focused on the body, the high degree of automation, flexible operation
Third Bridge on raw materials used in Japan as part of the fundamental LPC automatic system or Taiwan JIN, S EPC system and the choice of photoelectric corrective domestic simulation system
Selection of Japan's Mitsubishi Corporation, PLC systems and human-computer interface for control
The main driver for using AC inverter
Equipped with disc-cutter and knife, according to the user the option of using different materials
Equipped with devices to eliminate static electricity
All guided round of the import and use of domestic famous Bearing
Optional mechanical slip to reel winding tension of automatic taper, all kinds of materials is conducive to the resumption Vol. Tension-volume imports of used automatic tension.
Technical parameters
Machine Model
TCJ-WFQ1100B
TCJ-WFQ1300B
TCJ-WFQ1500B
The largest diameter membrane
ф1000 mm
ф1000 mm
ф1000 mm
- Cut the original width of the largest volumes
1100mm
1300mm
1500mm
Cutting width of the membrane
50-1100mm
50-1300mm
50-1500mm
In diameter at the largest volumes
ф600 mm
ф600 mm
ф600 mm
Mechanical speed
0 ~ 200m/min
0 ~ 200m/min
0 ~ 200m/min
Correcting errors
± 0.5mm
± 0.5mm
± 0.5mm
Dominate the way
PLC + man-machine interface
PLC + man-machine interface
PLC + man-machine interface
Tension Control
Taper automatic adjustment
Taper automatic adjustment
Taper automatic adjustment
For the fundamental way
Analog control photoelectric
Analog control photoelectric
Analog control photoelectric
整機weight
3200 kg
3600 kg
4000 kg
Appearance size (L × W × H)
3000 × 2300 × 1400
3200 × 2500 × 1400
3400 × 2700 × 1400
|
